RFID Laboratory Labels, Polypropylene, Matte White

UHF RFID laboratory labels for accurate identification

These UHF RFID laboratory labels are designed for reliable identification in medical and pharmaceutical laboratory environments. The label is specifically designed for use on microtiter plates, petri dishes, and cell culture dishes, where accuracy, consistency, and traceability are essential. Thanks to its slim profile and matte finish, the label is suitable for applications where space is limited and reflection is undesirable.

The label is designed for general laboratory identification and supports processes that require the efficient tracking of samples, plates, and cultures within controlled environments.

UHF RFID technology for laboratory applications

The RFID label operates at UHF frequencies within the 860–960 MHz range and complies with the EPC Class 1 Gen 2 and ISO 18000-6C standards. This makes the label compatible with common UHF RFID readers used in laboratories and research facilities.

The maximum read range is up to 1.0 meter, which is well-suited for laboratory processes where controlled and targeted scans are required. The NXP UCODE 8 chip used in these labels offers stable performance and reliable identification even with repeated use.

Compact size and matte polypropylene finish

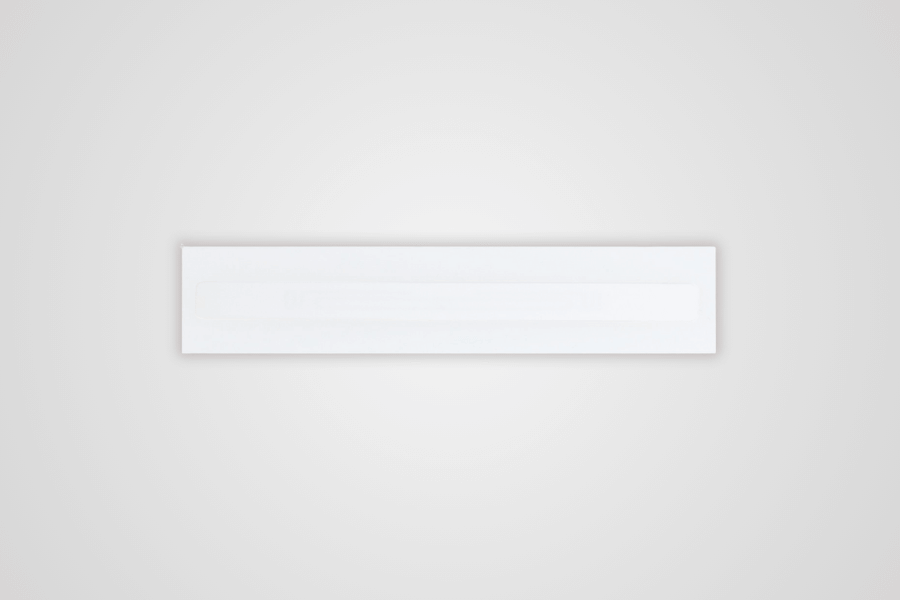

Measuring 65 × 6 mm, this RFID label is exceptionally compact and suitable for narrow surfaces such as the edges of plates and trays. The matte white polypropylene material prevents distracting reflections and ensures clear visual readability.

The label is designed for indoor use and operates reliably within a temperature range of -40 °C to 85 °C. The total label thickness of approximately 0.240 mm ensures a low profile, which is important in laboratory environments where precision is required.

Reliable adhesion and durable construction

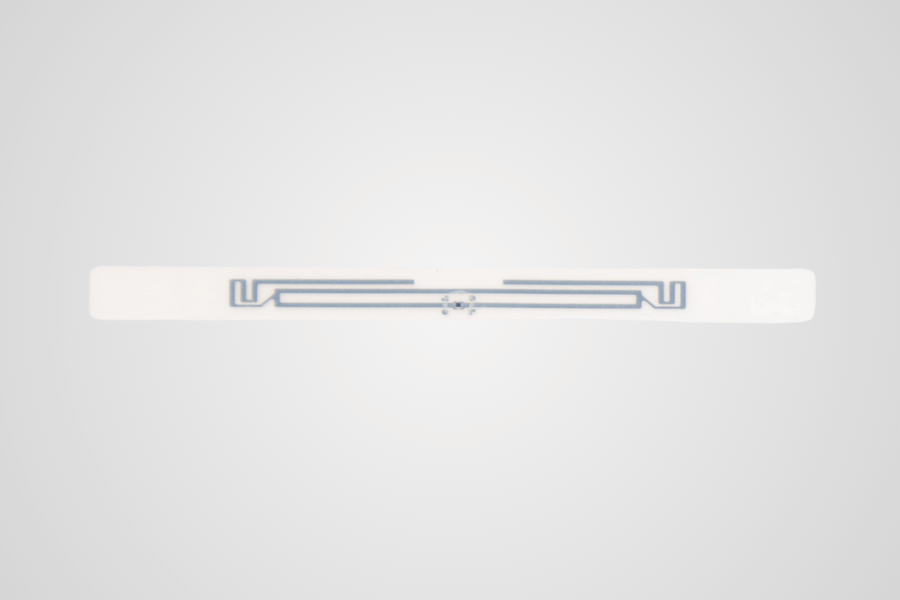

The chip is attached to an aluminum antenna using anisotropic conductive film adhesive. This construction ensures stable electrical properties and consistent RFID performance. The permanent acrylic adhesive reliably bonds to non-metallic surfaces such as plastic and glass, which are commonly found in laboratories.

The label is suitable for thermal transfer printing, making it easy to add additional information such as codes, text, or identification numbers.

Efficient processing and quality control

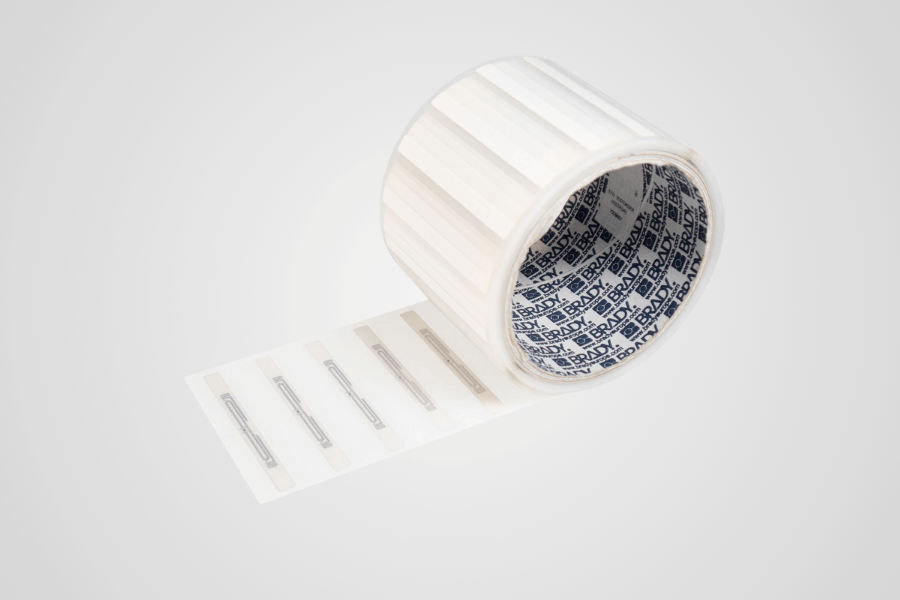

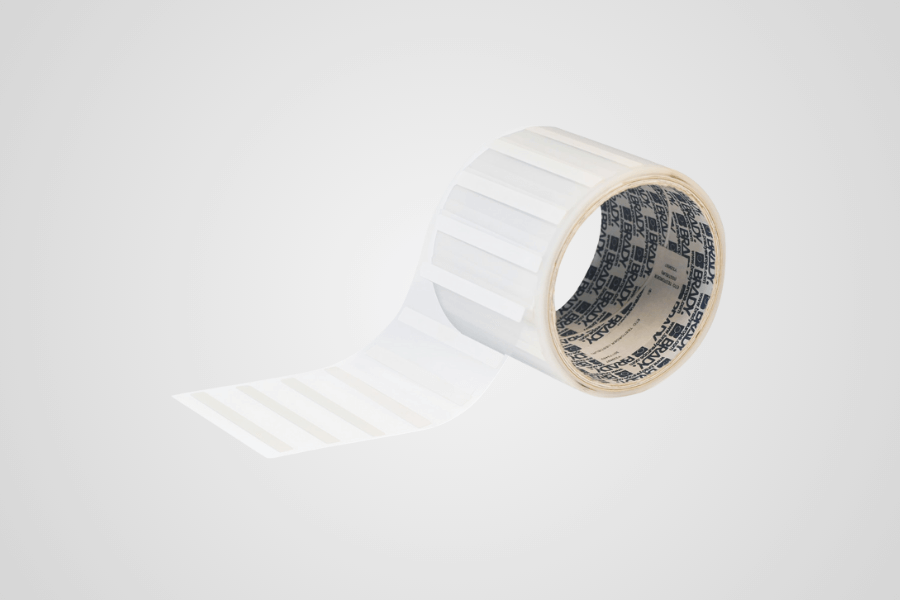

The RFID labels are supplied in rolls of 500 and are wound outward for efficient processing in printers. Each roll is fully inspected, and any non-conforming labels are marked. This ensures error-free processing in laboratory workflows where reliability is crucial.

The labels are compatible with industrial printers such as the Sato CL4NX Plus and Sato CT4LX, which simplifies integration into existing labeling processes.

Applications in medical and pharmaceutical settings

These UHF RFID laboratory labels are suitable for general identification, sample traceability, and labeling of laboratory equipment and consumables. They support processes in pharmaceutical manufacturing, medical diagnostics, and research laboratories where accurate identification and process control are essential.

For organizations looking for a compact and reliable RFID solution for laboratory applications, these labels offer a practical and purpose-built choice.
