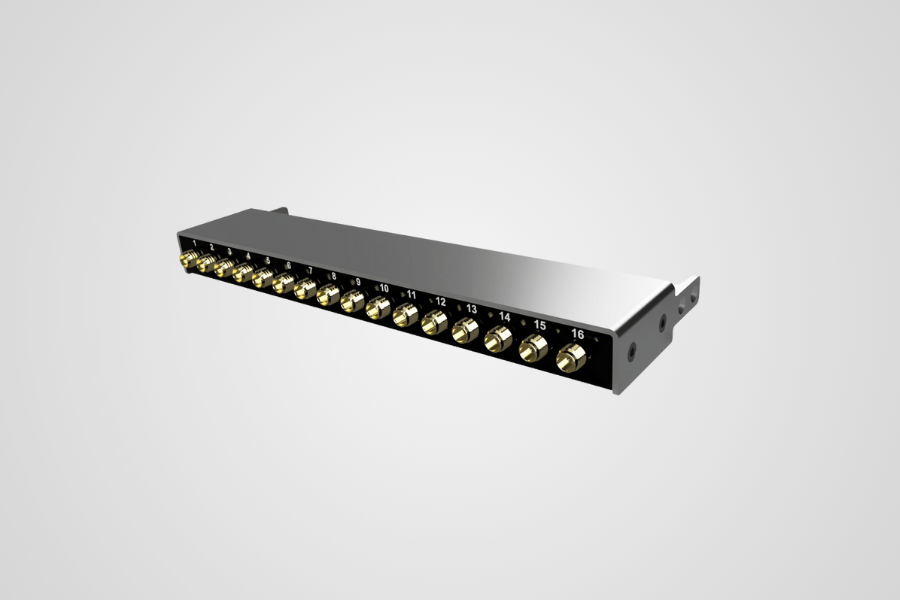

Brady RFID Multiplexer, 16-port

Multiplexer for expanding fixed RFID installations

The Brady MUX 16-port multiplexer is designed to provide scalable and flexible expansion for fixed RFID installations. This multiplexer is fully integrated with the Brady FR22 fixed RFID reader and allows you to expand the number of RFID read zones from four to a maximum of sixteen antennas. This enables you to create a comprehensive and accurate RFID system using a single central reader, without adding additional fixed readers.

Expand RFID reading zones without added complexity

The MUX16 significantly increases the range and coverage of RFID applications. By connecting multiple antennas, you can distribute read points across different zones such as conveyor belts, passageways, racks, or production stations. This makes the multiplexer ideal for applications such as asset tracking, inventory management, inspection processes, and automated identification. Thanks to the smart switching between antennas, read quality remains consistent, even in complex installations with multiple read points.

Unique power and data transmission via coax

A key technical advantage of the Brady MUX16 is its unique combination of power and data transmission via coaxial cables. This eliminates the need for separate power cables for each antenna, simplifying installation and keeping the cabling neat and organized. The multiplexer is designed with very low signal loss, resulting in higher efficiency and more reliable RFID performance across all connected antennas.

Direct integration with FR22 and NUR API

The Brady MUX16 is fully compatible with the Brady FR22 fixed RFID readers and is immediately ready for use with the NUR API. This allows you to centrally manage antennas and read zones from the same software environment as the RFID reader. Through the API, the multiplexer can be precisely controlled within existing RFID solutions, without the need for additional middleware or complex configurations. This makes the MUX16 suitable for both standard installations and custom solutions in industrial environments.

Visual status monitoring and rugged design

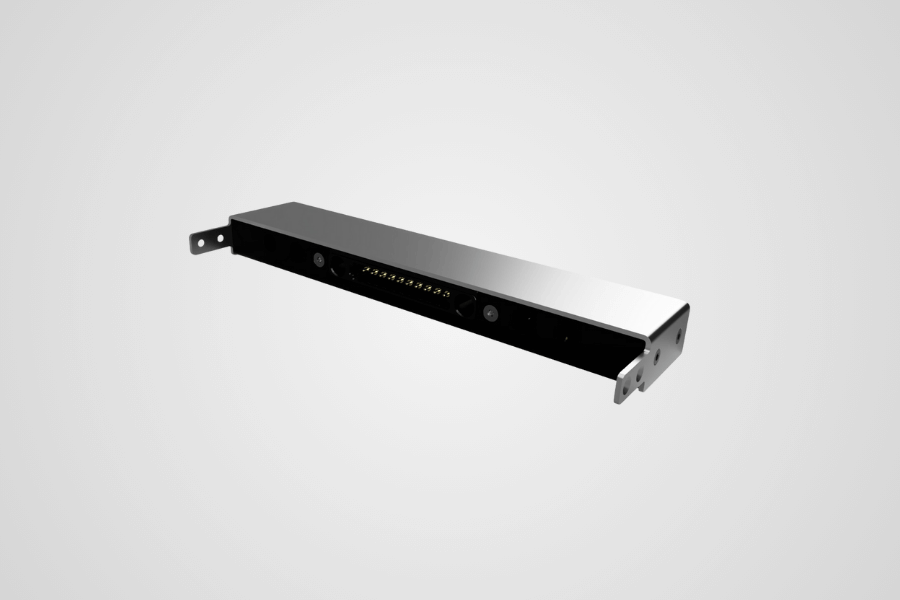

For clear monitoring, the multiplexer is equipped with LED indicators that show which antennas are active. This simplifies installation, maintenance, and troubleshooting. The compact housing with IP20 protection rating is designed for permanent installation in controlled environments such as control cabinets, production areas, and technical installations. With low power consumption and a wide temperature range, the MUX16 continues to function reliably in industrial applications.

Suitable for a wide range of industries

The Brady MUX 16-port multiplexer is used in sectors such as logistics, manufacturing, healthcare, energy, chemicals, retail, and the high-tech industry. By efficiently expanding RFID read zones without adding additional readers, the MUX16 reduces total system costs and increases the scalability of fixed RFID solutions. When combined with the Brady FR22, this multiplexer forms a solid foundation for professional, future-proof RFID installations.
