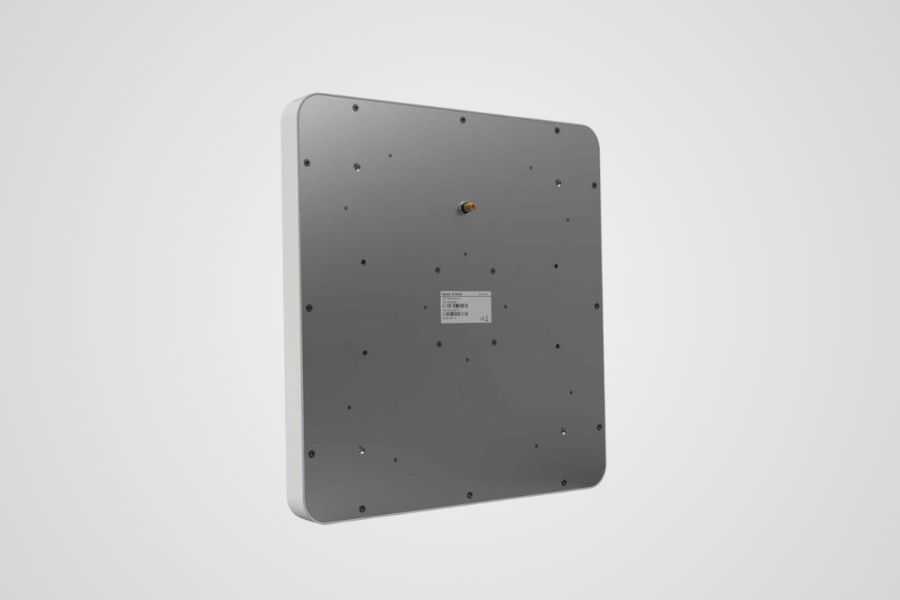

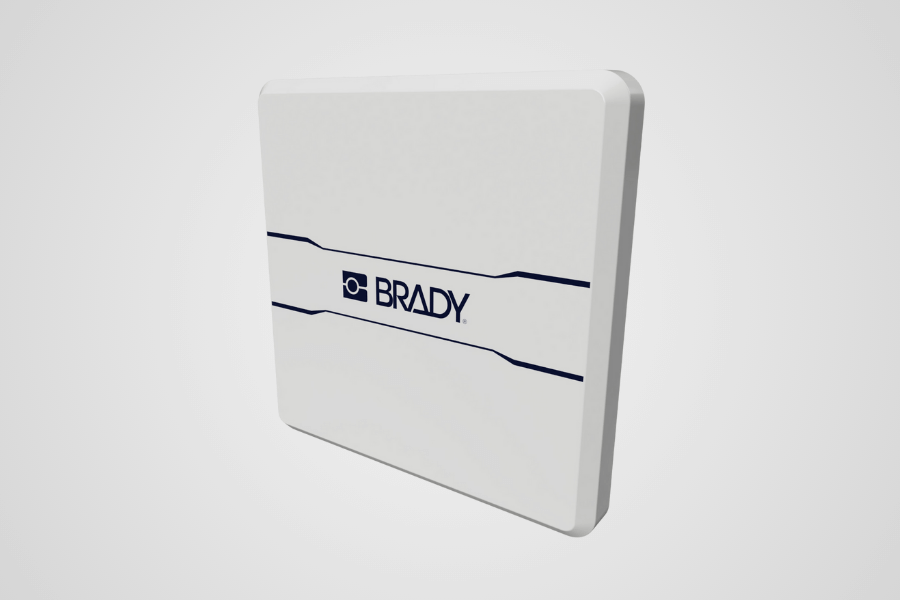

Brady GA30 UHF RFID Antenna

Brady GA30 UHF RFID Antenna

The Brady GA30 UHF RFID antenna is a powerful broadband antenna designed for professional fixed RFID applications that require maximum read range, stability, and flexibility. This antenna is widely used in combination with fixed RFID readers such as the Brady FR22 and serves as a reliable building block within industrial RFID infrastructures. Thanks to its high gain and true circular polarization, the GA30 delivers consistent performance regardless of the position or orientation of RFID tags.

Designed for maximum read performance

The GA30 is designed to deliver excellent RFID performance in environments where accuracy and range are critical. With a gain of 10 dBic and RHCP circular polarization, RFID tags are reliably read from any direction. This is particularly important in situations where tags are moving, overlapping, or positioned unpredictably. The antenna minimizes reading errors and contributes to a stable data stream within tracking and identification processes.

Flexible mounting on all surfaces

A key advantage of the Brady GA30 is its versatility in mounting. The antenna can be mounted directly onto virtually any surface, including metal, without any loss of performance. This makes the GA30 particularly well-suited for industrial environments with metal structures such as machines, racks, and frames. Thanks to support for VESA standard mounting, the antenna can be easily integrated into existing installations and enclosures.

Suitable for worldwide use thanks to its broadband design

The GA30 is a true global-band antenna and supports a frequency range from 865 MHz to 928 MHz. This allows the same antenna to be used in both ETSI and FCC regions. This offers a major advantage for organizations that operate internationally or use standardized RFID solutions across multiple locations. It simplifies inventory management, installation, and maintenance because a single antenna type can be used worldwide.

Rugged design for harsh industrial environments

The Brady GA30 is designed for long-term use in demanding environments. With an IP68 rating, the antenna is fully protected against dust and water and is suitable for both indoor and outdoor applications. The antenna operates reliably within a wide temperature range and maintains stable performance under varying environmental conditions. This makes the GA30 suitable for use in warehouses, manufacturing facilities, logistics hubs, and outdoor industrial sites.

Widely applicable in professional sectors

The GA30 is used in a wide range of sectors, including logistics, manufacturing, retail, healthcare, energy, and industry. Typical applications include asset tracking, inventory and inspection labels, RFID labeling, and temperature indication. Thanks to its combination of high performance, rugged construction, and global compatibility, the Brady GA30 is a future-proof choice for organizations looking to set up their fixed RFID installations in a professional and scalable manner.
