Brady FR22 UHF RFID Starter Kit LTE with BFA 868 Antenna (EU)

Complete fixed RFID solution with LTE and a beamforming ceiling antenna

The Brady FR22 LTE + BFA 868 EU kit is an advanced fixed RFID solution for organizations that require highly accurate tracking, direction detection, and autonomous connectivity. This kit combines the powerful Brady FR22 fixed RFID reader with LTE and the Brady BFA 868 beamforming ceiling antenna into a single integrated system for smart manufacturing and logistics environments.

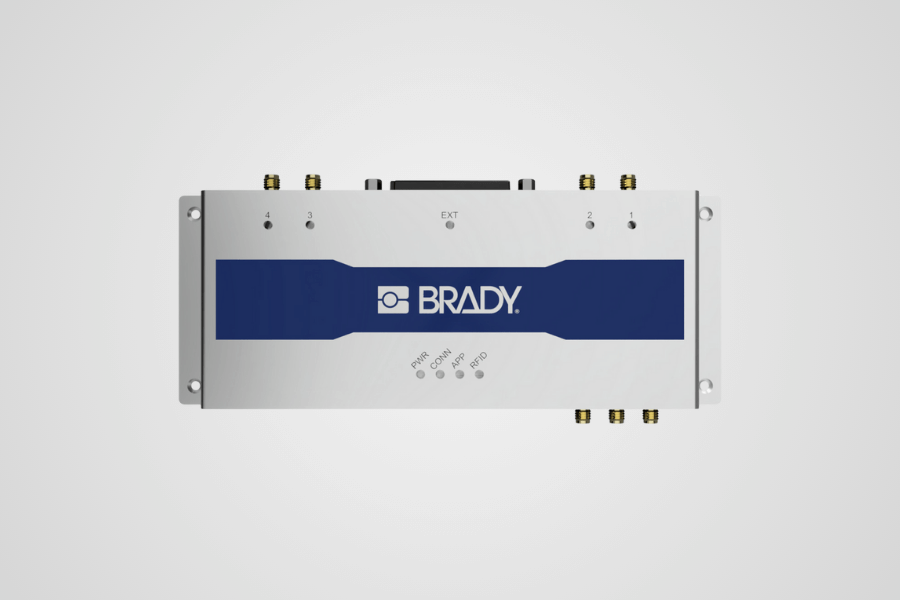

Powerful UHF RFID performance for complex environments

The FR22 LTE forms the technical core of this solution and is equipped with a next-generation UHF RFID engine based on the latest technology. As a result, the system processes up to 1,000 RFID tags per second, even in environments with high tag density. Support for the ISO 18000-63 EPC Class 1 Gen2 v2 standard ensures broad compatibility with UHF RFID tags throughout Europe. This makes the kit suitable for both standard identification and complex industrial tracking applications.

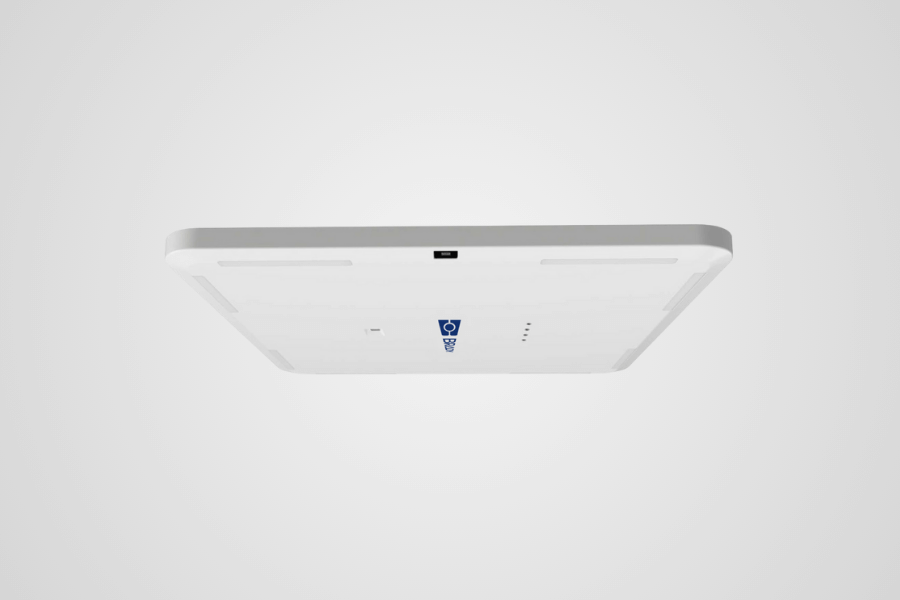

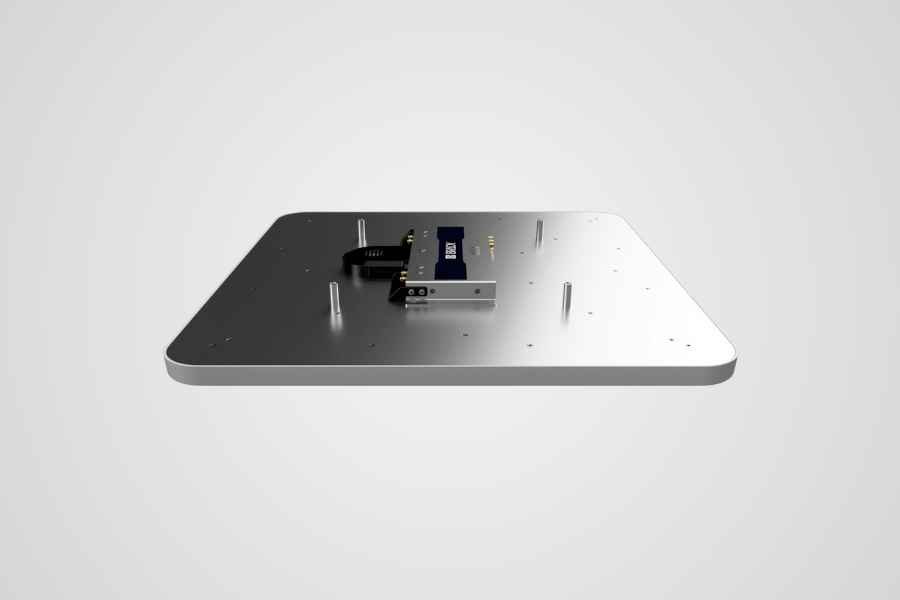

Beamforming BFA 868 ceiling antenna with directional detection

The Brady BFA 868 is an advanced ceiling-mounted antenna with 28 software-controlled, overlapping beams. This beamforming ensures exceptionally high read coverage and accuracy. All beams can be activated simultaneously for maximum RFID performance. The integrated motion and direction detection sensor makes it possible not only to detect objects but also to determine their direction of movement and position within a space. This provides valuable spatial insight that goes beyond traditional RFID solutions.

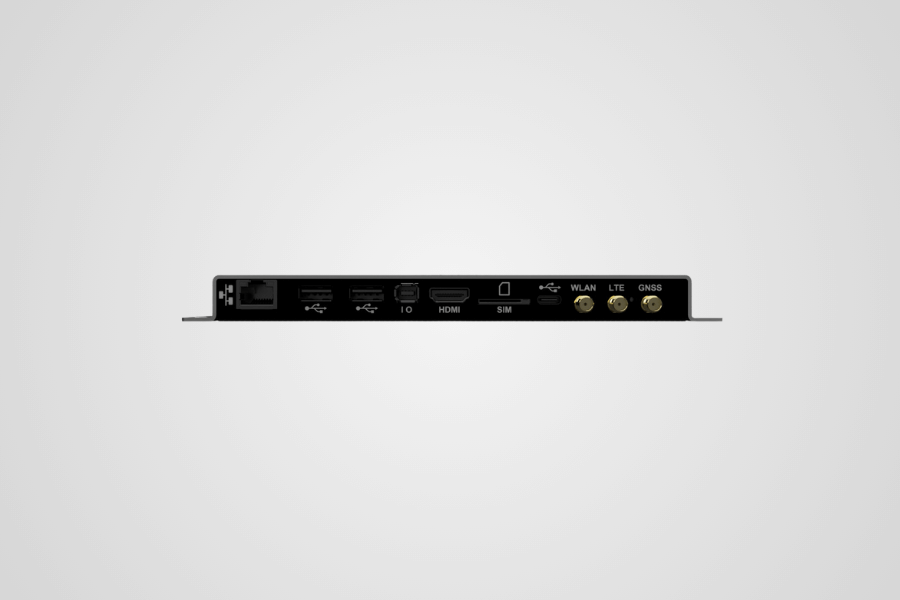

Built-in LTE for autonomous communication

A key distinguishing feature of this kit is the FR22’s integrated LTE connectivity. This allows the system to communicate directly over cellular networks without relying on Ethernet or Wi-Fi. This makes the solution ideal for remote locations, temporary installations, and environments where network cabling is unavailable or undesirable. In addition to LTE, the FR22 also supports Ethernet, Wi-Fi, Bluetooth, USB-C, and GPIO, offering maximum flexibility in system design.

Linux platform with web apps and API integration

The FR22 LTE runs on a stable Linux operating system and features a quad-core A7 processor with 1 GB of RAM. You can centrally configure and manage the entire system via the integrated web management interface. Developers can create their own web apps with user interfaces without needing an external PC or tablet. Integration with existing IT and OT systems is achieved via RESTful APIs, NUR API, OPC UA Auto-ID server, and SSH access.

Designed for smart manufacturing and tracking

The Brady FR22 LTE + BFA 868 kit is ideal for applications where the position, movement, and direction of objects are critical. Examples include automated warehouses, production lines, logistics hubs, and controlled access zones. With its IP20 rating, support for Power over Ethernet (PoE 802.3at), and rugged industrial design, this kit is engineered for reliable fixed installations in demanding environments.
