Brady BFA UHF RFID Antenna 915 MHz

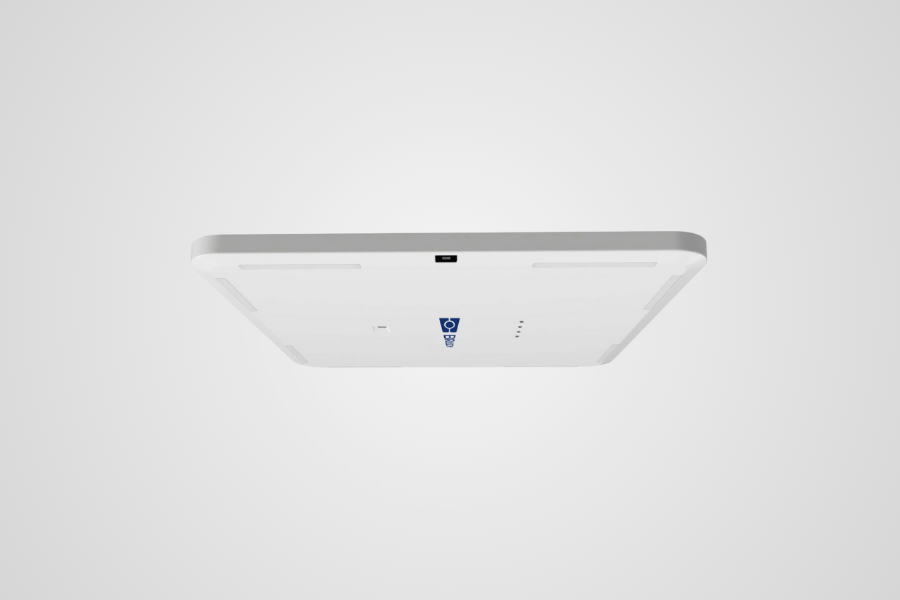

Brady BFA 915 RFID Ceiling Antenna

The Brady BFA 915 RFID ceiling antenna is an advanced beamforming RFID antenna designed for highly accurate detection, positioning, and directional tracking of objects in professional environments. This model is designed for applications operating within the 915 MHz frequency range and is often used in combination with the Brady FR22 fixed RFID reader. Through the use of software-controlled beams and integrated sensor technology, the BFA 915 offers a high level of precision and reliability in fixed RFID installations.

Software-controlled, high-resolution beamforming

The Brady BFA 915 uses 28 separate RFID beams that are fully software-controlled. These beams feature dual polarization and can be activated individually or simultaneously. Overlapping beams create a fine-mesh read field that detects RFID tags with high consistency and reproducibility. This makes it possible not only to identify objects but also to accurately determine their relative position within a space.

Real-time direction and motion detection

A key distinguishing feature of the BFA ceiling antenna is its integrated motion and direction detection sensor based on time-of-flight technology. In combination with software-controlled RFID beams, the system can determine the direction in which objects are moving. This enables applications where sequence, movement, and direction are critical, such as passage detection, zone determination, and the analysis of goods flows within warehouses and buildings.

Direct integration with the Brady FR22

The Brady BFA 915 is specifically designed for seamless integration with the Brady FR22 fixed RFID reader. The reader can be mounted directly to the back of the antenna via the Brady expansion port. This results in a compact and tidy installation without loose components or complex cabling. Thanks to VESA-standard mounting, the entire assembly can be securely attached to ceilings or structures. Integrated LEDs and a loud buzzer provide clear visual and audible feedback during installation and use.

Designed for permanent ceiling installations

The BFA 915 RFID ceiling antenna is intended for permanent installation in controlled indoor environments. Its slim, low-profile design allows the antenna to be discreetly integrated into ceilings without visual disruption. The antenna operates reliably over a wide temperature range and is designed for long-term, continuous use in mission-critical RFID systems.

Suitable for international and complex applications

The Brady BFA 915 RFID ceiling antenna is used in sectors such as logistics, manufacturing, healthcare, security, and facility management. Typical applications include asset tracking, inventory and inspection tags, RFID labeling, and temperature monitoring. Thanks to the combination of beamforming, directional detection, and direct FR22 integration, the BFA 915 is particularly well-suited for organizations operating in international environments where the 915 MHz frequency spectrum is required and where high accuracy and reliable real-time insights are essential.
